Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C

Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C - Operation Theory: •Hygiene Sensor Toilet is automatically controlled by a build-in microcomputer, the film roll will stop after turning exactly one round. The used sanitary film will be destroyed by a cutter to ensure one time use.
•The Hygiene Toilet Seat Covers will automatically replace the used film roll to a new film cover, which can provide a new toilet seat for your every usage. This happens when the user put hand in front of the sensor device or when the stainless steal button is pressed by the user.

Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C



Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C

- Operation Theory:
• Hygiene Sensor Toilet is automatically controlled by a build-in microcomputer, the film roll will stop after turning exactly one round. The used sanitary film will be destroyed by a cutter to ensure one time use.
• The Hygiene Toilet Seat Covers will automatically replace the used film roll to a new film cover, which can provide a new toilet seat for your every usage. This happens when the user put hand in front of the sensor device or when the stainless steal button is pressed by the user.


- Product Specifications


Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C Specification.jpg

Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C Button Style.jpg

- Product Design:
• Ergonomic design
• Fineness of density
• Easy installation & operation
• Simple but elegant appearance
• Able to fit 95% of toilet bowls in the market


- Material:
• Smart Hygiene Toilet Seat – Recyclable ABS
• Sanitary Film – Recyclable HDPE (Food Grade Plastic)

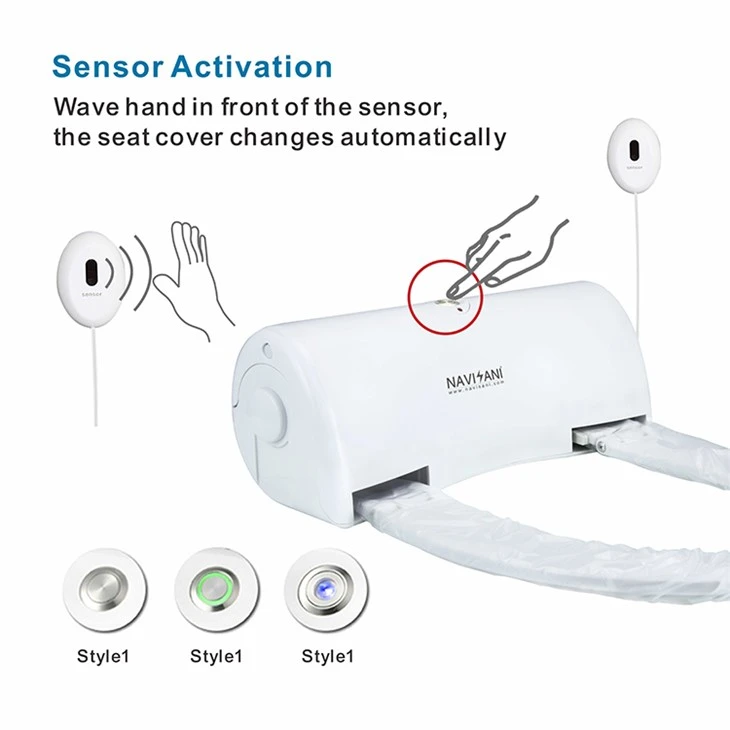

- Starting Method:
• Operated by Stainless Steel Button, damage resistance, can be used more than 200,000 times;
• Activated by Infrared Sensor (Touch Free, 6-12cm)


- Built-in Microcomputer & Indication Light (Red):
• Overload warning signal: the LED light will be on for 2 seconds;
• If counter wheel fault, no loading or the film roller is not installed in the correct place: the LED light will be on all the time;
• The LED light will flash when battery voltage is low;
• Restarting interval (6 seconds) to avoid waste.


- Power Supply methods:
• Rechargeable battery: A full charged battery can be used more than 3,000 times.
• Adapter: input voltage: 100V-240V, output voltage: DC 6-7.5V.


- Charging methods:
• If the power supply is available in the restroom:
Open the white tarpaulin located on the back of pedestal and have it charged.
• If the power supply is not available in the restroom:
A.push the lever on the bottom, then take out the seat and have it charged where power supply is available.
B.open the cover located on the back of pedestal, pull the red ribbon and take out the battery, then have it recharged where available.


- Replacement Warning:
• A red line will appear when the film roll remains 1-2m, it reminds you to replace a new film roll.


- Application Scope:
• Vertical distance: 450-480mm (From center between two installation holes to the top front of toilet bowl)
• Horizontal distance: 80-210mm (Distance between two installation holes)


- Other Functions and Protective of Toilet Seat Hygienic Covers:
• Anti Flaming
• LED Light Warning
• Overload Protection
• Counter Fault Warning
• Restarting Interval (6 seconds)
• Auto Replacement of Film Rolls
• Low Battery Power Voltage Warning
• All Metals Components are Anti-corrosion


- Application Places:


Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C Applation Place.jpg


Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C Certification.jpg

Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C International Fair.jpg

Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C Packing.jpg

If the Disposal Hygiene Sensor Toilet Covers Touch Free | Automatic Smart Sanitary Toilet Seat Electric NS201C caters to your requirement, please be free to contact our factory. As a professional manufacturer and supplier, we are always at your service.
